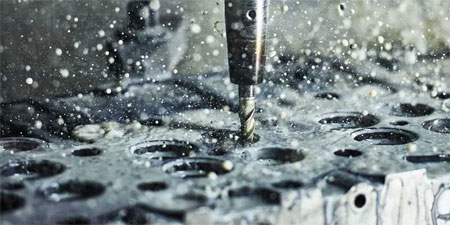

CNC hole machining refers to various hole-making operations carried out by CNC machines, including drilling, tapping, boring, and more. Unlike traditional manual machining, CNC machining uses pre-programmed instructions and control systems to ensure precise hole positioning and accurate machining paths, fulfilling design specifications for hole size and shape.
Several instructions are used in CNC machining to perform various hole-making tasks. Below are 10 common instructions and their applications in the process:
For standard hole drilling, widely used in general operations.
Adds a pause to the drilling process for precise depth control.
Ideal for deep hole machining, reducing tool load through cyclic feeding.
Used for threading operations, controlling spindle rotation and feed speed.
Suitable for medium-depth boring, improving hole accuracy and finish.
Similar to G85 but with a spindle stop after boring, useful for specialized operations.
Used for eccentric or irregular hole processing, allowing offset boring.
After boring, this instruction requires manual return to the starting position.
Suitable for tasks needing precise control over hole depth and stop points.
G98 returns to the initial face, while G99 returns to the R point, depending on the required precision.
These instructions are flexible and can be combined to optimize efficiency and precision in CNC hole machining.

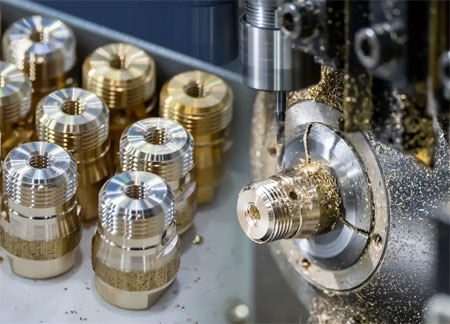

Tapping is the process of creating internal threads inside a hole. In CNC machining, it usually involves a specific command, like G84, which controls the spindle’s rotation and feed to produce accurate threads.
Thread accuracy is crucial because it directly affects the quality of components like bolts and nuts. Adjusting the tapping speed, feed rate, and coolant flow properly helps ensure high-quality threads and extends the life of the tool.
CNC drilling and tapping are two distinct operations, each serving a different purpose:
Tapping can only be performed if there is a hole. This means that a drilling operation is required before tapping. Although both operations are part of CNC machining, they typically require separate programs and settings.

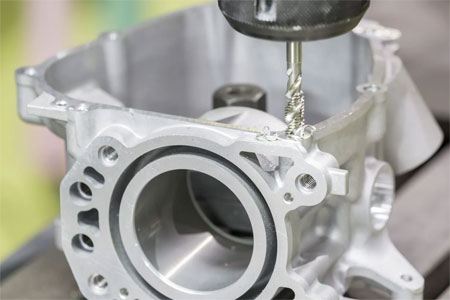

CNC hole machining plays a crucial role across various industries, especially in the production of precision parts. It’s commonly used in areas such as:
This technology is also widely applied in medical devices, precision instruments, and machinery, making it an essential part of modern manufacturing.
As a high-precision and efficient manufacturing technology, CNC hole machining is widely used across various industries. Mastering key commands allows operators to perform hole machining tasks more efficiently. By properly combining processes like tapping and drilling, both part quality and machining speed can be improved. For businesses, optimizing this process can enhance production capacity and strengthen competitiveness.
