Electrical Discharge Machining (EDM) is a non-contact machining method that utilizes an electric spark discharged between an electrode and a workpiece to remove metal. During the discharge process, the high temperatures generated cause the surface of the workpiece to locally melt or evaporate, gradually removing the metal to create the desired precision shape.
This technique is suitable for the machining of very fine and complex parts, and is particularly advantageous when working with hard materials.
The main reasons why EDM can machine parts with precision are as follows:
EDM can achieve micron-level accuracy, which is particularly suitable for parts that require extremely high precision machining. Since EDM can precisely control the discharge time, discharge intensity and electrode shape, the dimensions of the machined parts are extremely accurate.
EDM does not involve any mechanical contact and therefore avoids any deformation or wear that may be caused during the machining process. This makes EDM particularly suitable for the manufacture of precision parts made of hard or brittle materials.
It can create complex shapes and tiny holes, even geometries that are difficult to machine by other machining methods, through the precision design of electrodes, which is especially important in the machining of precision parts.
The ability to remove metal on a fine scale while reducing tool contact wear produces a smoother surface quality. This is critical for parts that require high quality surfaces and fine structures.
EDM can be categorized into three main types as follows:

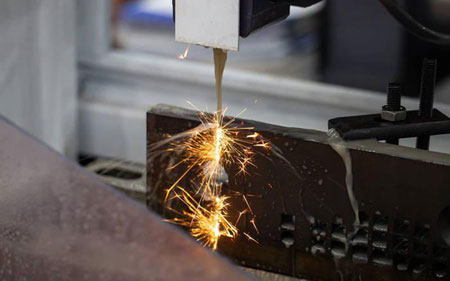

EDM is a method of machining complex shapes such as deep holes and grooves by means of an electric spark between the electrode and the workpiece, and is suitable for precision molds, complex parts, and industrial components requiring high precision.
Wire EDM is one of the most widely used types of EDM, which is capable of machining high-precision part contours by making precision cuts along the workpiece with a fine wire electrode. It is particularly suitable for manufacturing precision parts and molds, and is widely used in mold manufacturing, automotive parts, aerospace parts and other industries.

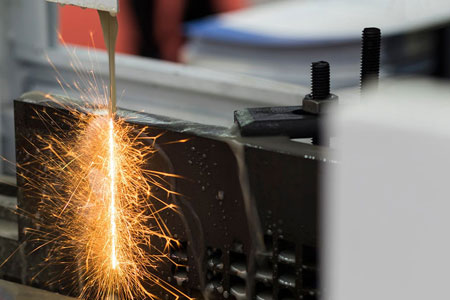

Drilling EDM is dedicated to machining tiny, deep holes in hard materials. This method is difficult to realize in traditional machining and is especially suitable for manufacturing small holes with high precision.
High accuracy:
Reach micron level accuracy to ensure precise parts.
Hard Material Machining:
Easy machining of hard materials such as hardened steel.
Complex Shapes:
Capable of machining complex shapes and fine holes.
Avoid deformation:
Electrodes do not come into contact to avoid thermal deformation.
Smooth surface:
Smooth machining surface, suitable for precision parts.
Although EDM has many advantages, there are some limitations:
According to the workpiece and machining requirements, select suitable electrode materials and carry out electrode design.
Setting discharge parameters, pulse frequency and electrode shape, etc. according to the workpiece material, size and accuracy requirements.
Machining is carried out by means of an electric spark between the electrode and the workpiece, removing metal and gradually molding it.
Coolant is used during machining to reduce the temperature, prevent overheating and remove scrap produced during machining.
Operation requires attention to: electrode wear, quality and flow of coolant, and possible overcutting during machining.
EDM has a wide range of applications in the manufacture of precision parts and is particularly suitable for the following areas:
EDM is capable of accurately manufacturing mold cavities and cores, suitable for complex shaped precision molds, widely used in the production of plastic molds, aluminum alloy molds and so on.
In the aerospace field, precision parts require extremely high accuracy, EDM can efficiently complete the precision manufacturing of aero-engine parts, turbine blades, etc.
EDM is suitable for high-precision machining of automotive parts, such as precision gears and bearings.
For the production of medical devices, especially implants and surgical instruments, EDM provides irreplaceable precision machining capabilities, ensuring that every detail meets high standards.
WEDM is an important tool in the manufacture of precision parts and has significant advantages in the following areas in particular:
Electrical Discharge Machining (EDM) is an excellent technique for manufacturing precision parts that excel in high precision, complex shapes and hard materials. Despite some limitations, such as slower machining speeds and higher equipment costs, its irreplaceability in the machining of high-precision parts has led to its widespread use in a number of industries, including aerospace, automotive manufacturing, and medical devices.
