Automotive Parts Machining: Insights from a seasoned mechanic
- November 11, 2024
- Tony
- Last updated on November 4, 2025 by Lucy
Having worked with automotive manufacturers for many years, I’ve seen all kinds of workpieces—from simple brackets to complex engine blocks. Now, let me share the truly critical points when machining key components that ensure vehicles operate safely and efficiently.
1. Overview
What Automotive Parts Machining Really Means?
In simple terms, it’s about turning raw metal into precision components that make cars work. But here’s the reality: it’s not just about cutting metal – it’s about creating parts that can handle heat, vibration, and stress for years without failing.
Why CNC is the Backbone of Modern Auto Manufacturing?
Precision That Builds Trust
We regularly hold ±0.01mm on engine components. That’s the difference between a smooth-running engine and one that rattles itself to pieces.
Speed That Meets Demand
When an automaker needs 50,000 transmission parts yesterday, CNC delivers. We’ve turned 8-week lead times into 2-week miracles.
Complexity Without Compromise
Modern cars have parts with curves, angles, and features that would have been impossible 20 years ago. CNC makes them routine.
2. Advantages of CNC Machining in the Automotive Industry.
The advantages of CNC machining in the automotive industry are very significant, mainly reflected in the following aspects:
- High precision and consistency:
CNC machining can provide micron-level machining accuracy to ensure the consistency of the dimensions of each part, to meet the strict requirements of the automotive industry for high precision. - Efficient production:
CNC machine tools are able to work continuously and reduce downtime, thus greatly improving production efficiency, especially suitable for mass production. - Complex geometry machining:
CNC technology can easily handle complex parts and meet the diverse design needs of automotive components. - Reduced labor costs and error rates:
Through computer control, CNC machining reduces the interference of human factors and improves the reliability and consistency of production.
3. How are automotive parts machining?
The manufacturing process of automotive parts usually involves many different types of machining methods, the common ones are listed below:

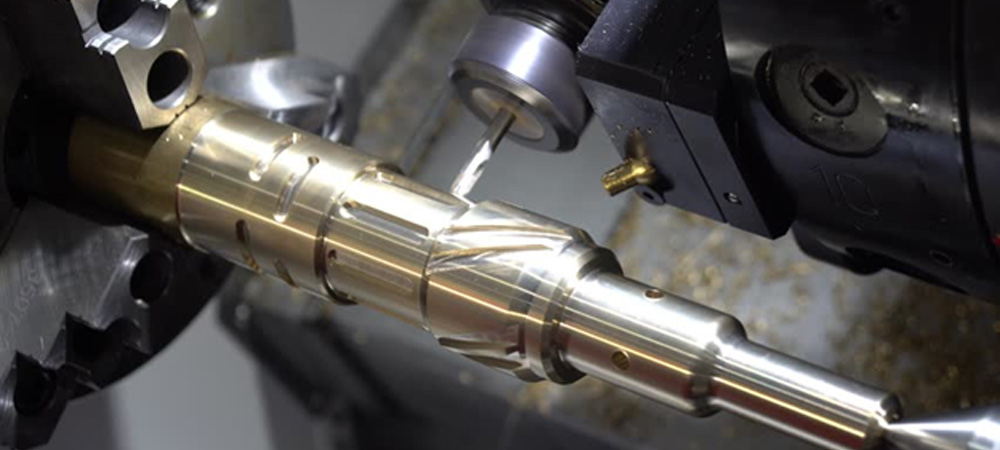

Lathe machining is used for parts with rotating surfaces in automotive accessories, such as crankshafts, driveshafts and wheel hubs, to ensure the accuracy and strength of these parts.
Drilling machining is used to machine holes in automotive parts, such as cylinder holes, brake disk holes and suspension connection holes, to ensure accurate hole placement and assembly precision.
Milling machining is used for machining flat surfaces, steps and complex surfaces on automotive parts, such as engine cylinder heads and transmission gears, to meet precision machining needs.
Grinding machining is used to improve the surface smoothness and accuracy of parts and is commonly used for components such as brake discs and bearings to reduce friction and improve durability.
Planing machining is suitable for profile machining of automotive parts, commonly used for body mounts and wheel mounts, etc. It is suitable for single piece or small batch production.
4. How does automotive parts machining change the automotive industry?
The introduction of automotive parts machining has had a profound impact on the automotive industry. In particular, CNC machining technology has played a vital role in the development of prototype and road test vehicles.
- Prototype Vehicle Manufacturing:
In the development of new models, prototypes need to be produced quickly and accurately with a variety of parts to test and verify the feasibility of the design. CNC machining can efficiently produce these complex parts and ensure the quality of each part. - Road Test Vehicle Manufacturing:
CNC machining ensures the precision of a large number of components that are needed for real-world testing of vehicles on the road, thus improving the reliability and accuracy of the tests.
5. Which automotive parts are manufactured by CNC machining?
Engine parts

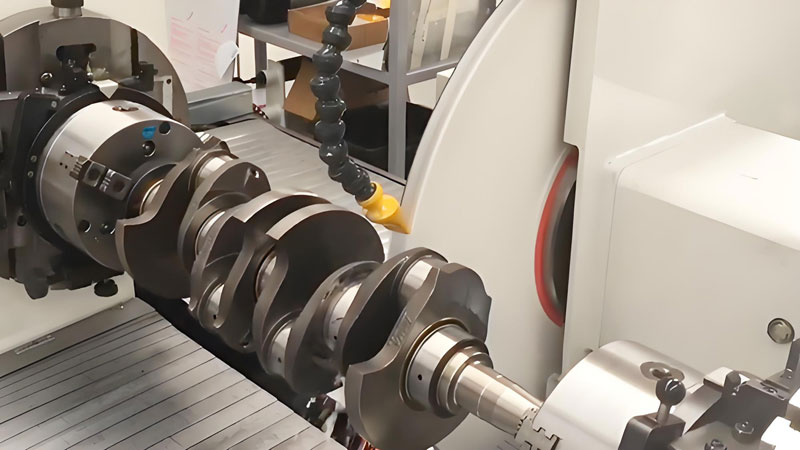

Such as crankshafts, pistons, cylinder heads, etc. These parts require high precision and durability, and CNC machining ensures their dimensional accuracy and surface quality.
Drive train parts
Including gears, clutch components and drive shafts, CNC machining provides precise gear meshing and strength to ensure a smooth and efficient transmission system.
Body parts

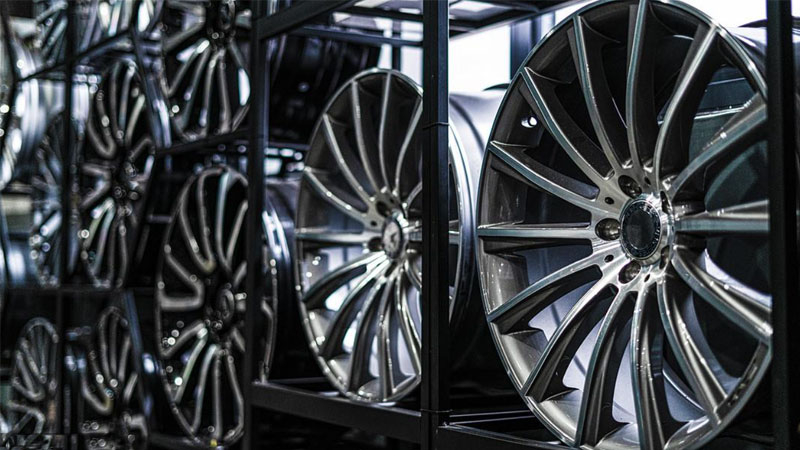

Like wheel hubs, door hinges and brackets, CNC machining ensures structural stability and consistency of appearance to meet the complex requirements of body design.
Brake system parts
Including gears, clutch components and drive shafts, CNC machining provides precise gear meshing and strength to ensure a smooth and efficient transmission system.
Brake system parts

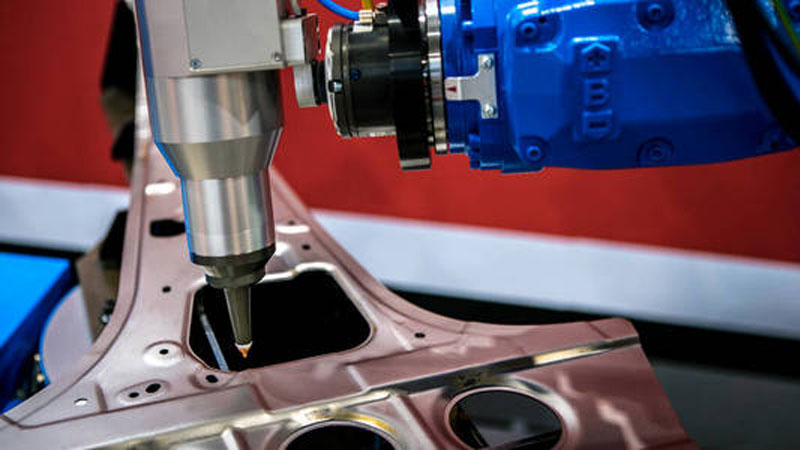

Commonly found in control arms, suspension mounts, etc. CNC machining provides strength and durability to ensure the comfort and stability of the suspension system.
Electrical system parts
Such as sensor brackets, battery boxes and power window guides, CNC machining ensures precision assembly and high reliability, adapting to the needs of electrified vehicles.
📌Case Study: Electric Vehicle Battery Tray
The Challenge: An electric vehicle manufacturer needed 20,000 aluminum battery trays for their new model. The part had to be lightweight, perfectly flat for thermal management, and leak-proof for liquid cooling. Their previous supplier had issues with warping and coolant leaks.
Our Solution: We implemented a multi-stage machining process using 5-axis CNC mills with temperature-controlled workholding.
Production Details:
- Material: 6061-T6 Aluminum, 15mm thick
- Critical Requirements:
- Overall dimensions: 1800mm × 1200mm × 80mm
- Flatness: 0.2mm across entire surface (thermal contact)
- Coolant channels: 8mm wide × 6mm deep, ±0.1mm
- 128 mounting holes: M6 threaded, ±0.05mm position
- Leak testing: 15 PSI for 10 minutes, zero bubbles
- Machining Strategy:
- Stress-relief roughing with 80% material removal
- Multiple finishing passes with decreasing depth of cut
- In-process verification with laser scanning
- Custom vacuum fixture to prevent distortion
- Production Results:
- Cycle time: 45 minutes per tray
- Daily output: 32 trays across three shifts
- Scrap rate: 0.5% (industry average: 3-5%)
- Leak test pass rate: 99.8%
- Dimensional consistency: All critical features within 0.1mm
- Cost Impact:
- 25% reduction in machining time vs. previous process
- 85% reduction in leak-related warranty claims
- 40% longer tool life through optimized toolpaths
The breakthrough came when we developed a proprietary fixturing system that maintained consistent clamping pressure while allowing for thermal expansion during machining. This eliminated the warping issues that plagued their previous supplier.
6. The Impact of Precision Machining on Automotive Manufacturing
Better Cars, Fewer Headaches
Precision machining means:
- Fewer warranty claims
- Better performance
- Higher customer satisfaction
Cost Savings That Add Up
I’ve seen manufacturers save millions by reducing scrap rates and improving efficiency.
7. Limitations of Automotive Parts Machining.
Although CNC machining brings many advantages, it also has some limitations:
- High cost:
High-end CNC equipment is expensive and the initial investment is large, especially for small and medium-sized enterprises, which may face higher production costs. - Machining complexity:
Although CNC machining is capable of handling complex parts, it may still face technical difficulties for certain extremely complex or special materials. - High equipment maintenance and technician requirements:
CNC equipment requires regular maintenance and operators must have a certain level of skill, increasing human resource requirements.
8. The future of automotive parts machining.
Electric Revolution

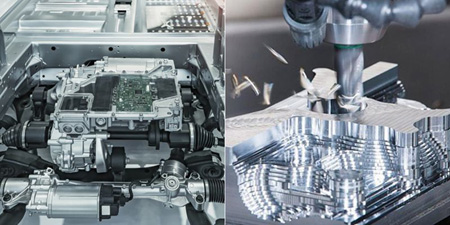

With the rise of new energy vehicles, the requirements of the automotive industry for parts are also changing. Components such as drive systems, electronic equipment and battery management systems for new energy vehicles require higher precision and greater innovation. We’re already machining battery components that didn’t exist five years ago.
CNC technology will continue to play an important role in the development of new energy vehicles, especially in the manufacturing of core components such as batteries and motors, where CNC machining technology will be able to provide finer and more efficient production capabilities.
Smarter Manufacturing
- Real-time monitoring: Machines that tell us when they need maintenance
- Adaptive control: Systems that adjust cutting parameters on the fly
- Digital twins: Virtual testing before metal ever gets cut
The Human Touch Still Matters
Despite all the technology, experience still counts. I can often hear when a cut isn’t right before the sensors detect anything.
9. Summary
Automotive parts machining, especially CNC machining technology, is changing the way the entire automotive industry produces.
From parts manufacturing to complete vehicle production, the application of CNC technology has improved the precision and quality of automotive parts, shortened the production cycle, reduced costs, and facilitated the development of new energy vehicles.
With the advancement of technology, the future of automotive parts machining will continue to promote the automotive manufacturing industry in the direction of more efficient and accurate development.
