Choosing the wrong steel can lead to rust, part failure, or unnecessary machining costs. I have seen expensive CNC projects fail because the material was selected too quickly.
Stainless steel is best for corrosion resistance and low maintenance, while alloy steel is better for high strength, wear resistance, and lower manufacturing cost. The best material depends on your operating environment, strength requirements, and machining budget.
When I work with engineers on CNC machining projects, material selection is usually the first serious discussion. A part may look perfect in CAD, but the wrong material can still fail during machining or in real-world use. I have worked on projects for robotics, industrial automation, and motorcycle components where the final decision between stainless steel and alloy steel changed both the production cost and the product lifespan. This is why I always treat material selection as an engineering decision, not just a purchasing decision.
Stainless Steel vs Alloy Steel in Engineering Applications
Many engineers focus only on dimensions and tolerances at the beginning of a project. Then corrosion, maintenance, or machining problems appear later. I have seen prototype runs delayed because the material could not handle the working environment.
Stainless steel contains chromium for corrosion resistance and long-term durability, while alloy steel uses added alloying elements to improve strength, hardness, and wear resistance for demanding mechanical applications.
The material decision affects every stage of production. It changes machining speed, tooling life, heat treatment options, welding performance, and even long-term maintenance costs. That is why experienced engineers usually compare material behavior before they finalize part drawings or production schedules.
What are Stainless Steel and Alloy Steel?
Stainless steel is a steel alloy that contains at least 10.5% chromium1. This chromium creates a passive oxide layer on the surface. That layer protects the material from rust and corrosion. Common grades include 304 stainless steel and 316 stainless steel. I often use them for food equipment, medical parts, and outdoor products. In many precision CNC projects, I rely on stainless steel parts manufacturing processes because they provide stable quality and long-term corrosion protection.
Alloy steel is different. It is designed mainly for mechanical performance. Manufacturers add elements like chromium, molybdenum, nickel, manganese, and vanadium to improve strength, toughness, and wear resistance. Common alloy steels include 4140, 4340, and 8620. I use these materials often for shafts, gears, motorcycle parts, and industrial machine components.
Why does this matter in manufacturing? Because material choice affects every production step. It changes machining speed, tool wear, heat treatment options, welding behavior, and long-term maintenance cost.
Here are the industries where I most often see this comparison:
| Industry | Common Material Choice | Main Reason |
|---|---|---|
| Aerospace | Alloy steel + stainless steel | Strength and heat resistance |
| Automotive | Alloy steel | Cost and mechanical strength |
| Medical | Stainless steel | Corrosion resistance and hygiene |
| Electronics | Stainless steel | Appearance and corrosion control |
| Industrial machinery | Alloy steel | Load-bearing performance |

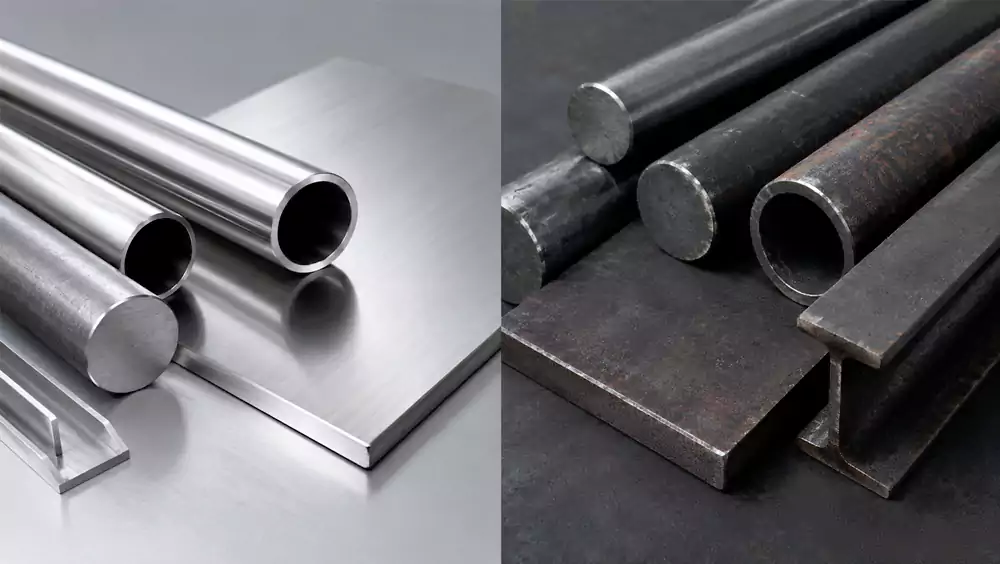

Types and Fundamental Differences Between Stainless Steel and Alloy Steel
Many buyers assume all steel materials perform the same way. That mistake often leads to rust issues, poor machinability, or unexpected maintenance costs after production starts.
The main difference is simple: stainless steel is designed for corrosion resistance, while alloy steel is designed for higher strength, hardness, and mechanical performance under load.
Once engineers understand this core difference, the material selection process becomes much easier. The real challenge is balancing strength, corrosion resistance, machining efficiency, and total project cost at the same time.

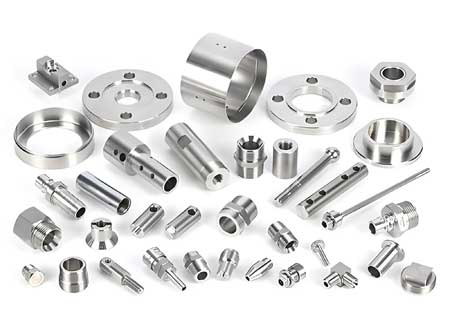

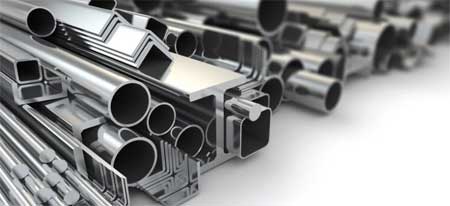

What is Stainless Steel?
The key element in stainless steel is chromium. Once chromium content reaches around 10.5%, the steel can form a protective oxide layer. This layer repairs itself when damaged.2 That is why stainless steel survives well in wet or chemical environments.
The most common grades I machine are:
| Grade | Main Feature | Typical Use |
|---|---|---|
| 304 | General corrosion resistance | Consumer products |
| 316 | Better marine resistance | Medical and marine |
| 17-4 PH | High strength stainless | Aerospace components |

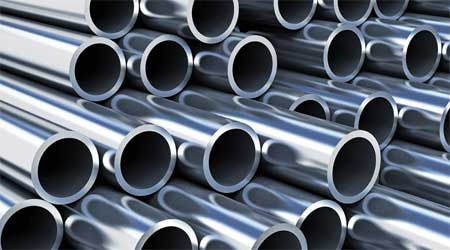

One issue with stainless steel is machinability. Austenitic grades like 304 can become gummy during CNC machining. They generate heat and increase tool wear. I usually reduce cutting speed and use stronger coolant flow when machining these materials. Over the years, I have learned that understanding the details of stainless steel machining helps engineers avoid unnecessary tooling costs and poor surface finishes.

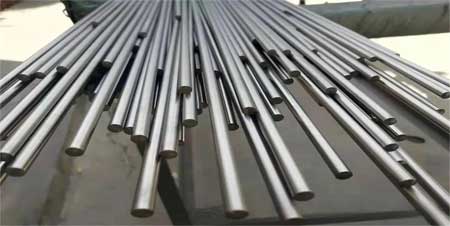

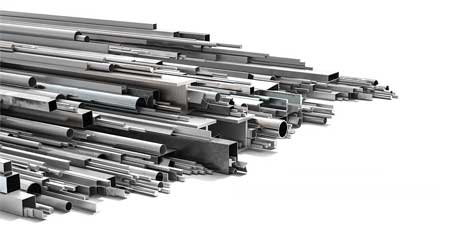

What is Alloy Steel?
Alloy steel is more focused on engineering performance. The added alloying elements improve strength, fatigue resistance, impact toughness, and heat treatment response.3

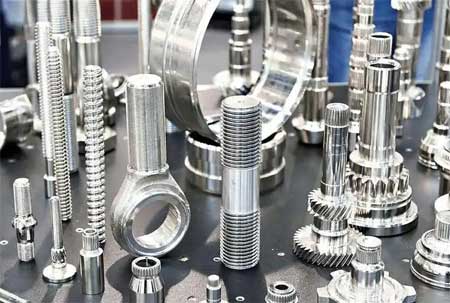

These are some common alloy steels I use in production:
| Grade | Key Advantage | Typical Application |
|---|---|---|
| 4140 | High strength | Shafts and tooling |
| 4340 | Excellent toughness | Aerospace parts |
| 8620 | Good carburizing response | Gears |
Alloy steel is usually easier to machine before heat treatment. It also gives better hardness after quenching and tempering. This is why many heavy-duty mechanical parts use alloy steel instead of stainless steel. For engineers comparing different grades, these common machining alloy metals provide a good reference for balancing strength, machinability, and production cost.
Key Differences Overview
Here is the simplest comparison framework I use with customers during project discussions:
| Factor | Stainless Steel | Alloy Steel |
|---|---|---|
| Corrosion resistance | Excellent | Moderate to poor |
| Strength | Moderate to high | High |
| Hardness | Moderate | Very high after heat treatment |
| Cost | Higher | Lower |
| Maintenance | Low | Higher |
| Machining difficulty | Medium to difficult | Easier before heat treatment |

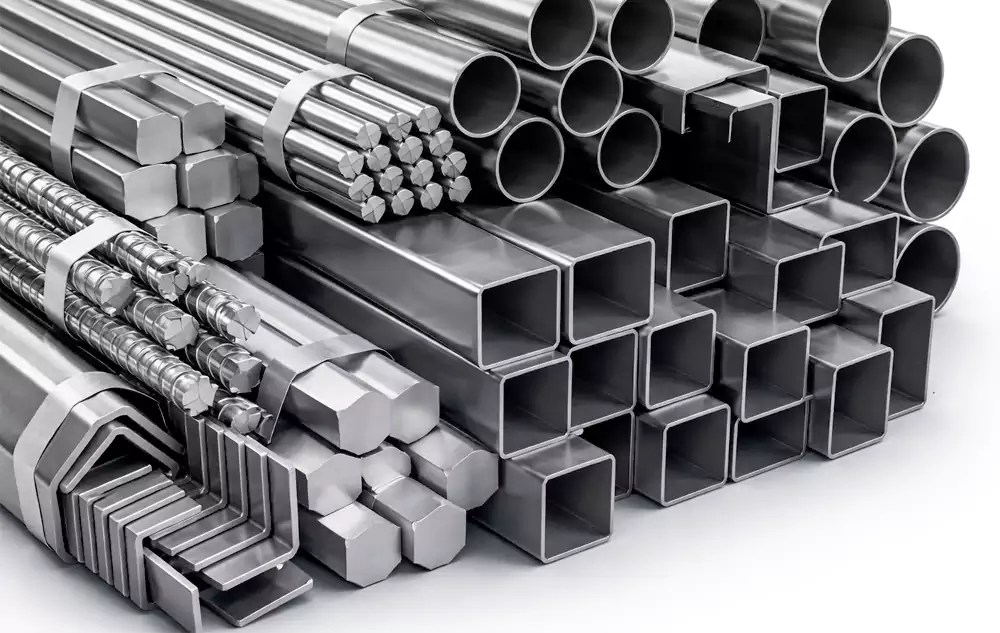

Performance, Cost, and Processing Comparison
Most engineers do not choose materials based on raw material price alone. They also look at machining time, maintenance cost, coating requirements, and expected service life before making a final decision.
Stainless steel costs more upfront but provides excellent corrosion resistance and lower maintenance, while alloy steel offers higher strength and lower initial cost but usually requires coatings or rust prevention treatment.
I have seen projects where a cheaper material created much higher maintenance costs later. I have also seen expensive stainless steel selected for applications where alloy steel would have worked perfectly. The best choice depends on the full operating conditions, not just the material price per kilogram.
Mechanical and Chemical Properties Comparison
When I compare these materials for customers, I focus on four areas first:
| Property | Stainless Steel | Alloy Steel |
|---|---|---|
| Tensile strength | Medium to high | High |
| Hardness | Moderate | High |
| Corrosion resistance | Excellent | Limited |
| Heat resistance | Good | Depends on grade |
Alloy steel usually wins in pure mechanical performance. For example, heat-treated 4140 can reach very high hardness levels while still maintaining toughness.
Stainless steel wins in environments with moisture, chemicals, or cleaning cycles. In food equipment and medical devices, corrosion resistance is often more important than maximum strength.
Cost Comparison
Material cost is only one part of the total manufacturing cost.
| Cost Factor | Stainless Steel | Alloy Steel |
|---|---|---|
| Raw material | Higher | Lower |
| Machining tools | Higher wear | Lower wear |
| Surface treatment | Often unnecessary | Usually required |
| Maintenance | Lower | Higher |
I once worked on an outdoor automation housing project. The customer first selected 4140 alloy steel because it was cheaper. After six months of field testing, rust appeared around fastener areas. We changed the design to 304 stainless steel. The material cost increased by 28%, but maintenance costs dropped sharply.
Machining and Heat Treatment Considerations
This is where real factory experience matters most.
Stainless steel creates more machining heat. Chips do not break easily. Tool wear is higher. I usually recommend coated carbide tools and stable coolant delivery.
Alloy steel is easier to machine before heat treatment. After hardening, machining becomes more difficult but the final strength improves greatly.
Here is a real machining case from one of my earlier projects:
| Parameter | Stainless Steel 304 | Alloy Steel 4140 |
|---|---|---|
| CNC machine | 3-axis VMC | 3-axis VMC |
| Cutting speed | 85 m/min | 140 m/min |
| Tool life | 3.5 hours | 6.2 hours |
| Coolant usage | High | Medium |
| Final hardness | HRB 88 | HRC 32 after heat treatment |
| Surface treatment | None | Black oxide |
This project involved precision robotic mounting brackets for industrial automation systems. The stainless version survived humid factory conditions with almost no maintenance. The alloy steel version delivered better rigidity at lower cost but needed surface protection.
Advantages and Limitations Summary
Stainless Steel Pros
- Excellent corrosion resistance
- Attractive surface finish
- Low maintenance
- Good for sanitary applications
Stainless Steel Cons
- Higher cost
- Lower hardness in many grades
- More difficult CNC machining
Alloy Steel Pros
- High strength and toughness
- Lower raw material cost
- Better heat treatment response
- Excellent fatigue resistance
Alloy Steel Cons
- Can rust easily
- Usually requires coatings
- Higher maintenance demand
Material Selection Guide for Industrial Applications
A material that performs perfectly in one industry may fail quickly in another. I always study the working environment first before recommending a material for CNC machining.
Choose stainless steel when corrosion resistance, appearance, and low maintenance matter most. Choose alloy steel when you need higher strength, better wear resistance, and lower production cost.
The right material choice should support both manufacturing efficiency and long-term product reliability. A strong material that rusts too quickly is still a bad choice. A corrosion-resistant material that cannot handle the load is also a bad choice.
How to Choose Between Stainless Steel and Alloy Steel
I usually ask customers four questions first:
- Will the part face water, chemicals, or humidity?
- Does the part carry heavy loads?
- Is long-term maintenance acceptable?
- Is cost or lifespan more important?
Choose stainless steel when:
- The environment is humid or corrosive
- Cleaning and hygiene matter
- Appearance is important
- Maintenance access is limited
Choose alloy steel when:
- Strength and toughness are critical
- Budget matters
- Heat treatment is required
- Surface coatings are acceptable
Industry-Specific Recommendations
| Industry | Recommended Material | Reason |
|---|---|---|
| Aerospace | 17-4 PH / 4340 | Strength and reliability |
| Automotive | 4140 / 8620 | Cost-effective durability |
| Medical devices | 316 stainless | Corrosion resistance |
| Industrial machinery | 4140 | Wear resistance |
| Consumer electronics | 304 stainless | Surface finish |
Corrosion Resistance & Environmental Factors
Environment changes everything.
Marine environments destroy untreated alloy steel quickly. Outdoor equipment also suffers from rain and humidity. Stainless steel performs much better in these conditions.
High-temperature environments need more analysis. Some alloy steels maintain strength better under load. Some stainless grades perform better under oxidation.
Indoor industrial machinery often uses alloy steel successfully because exposure to moisture is controlled.
FAQ
Is alloy steel stronger than stainless steel?
Yes. Alloy steel is usually stronger and harder than standard stainless steel grades, especially after heat treatment, which makes it better for high-load and wear-resistant applications.
Which is cheaper?
Alloy steel is generally cheaper than stainless steel because it contains fewer expensive alloying elements and is often easier to machine during production.
Does alloy steel rust?
Yes. Most alloy steels can rust when exposed to moisture, chemicals, or outdoor environments unless they receive protective coatings or regular maintenance.
Conclusion
Stainless steel solves corrosion problems and reduces maintenance. Alloy steel delivers higher strength and lower cost. The best CNC material choice depends on your environment, performance target, and long-term operating needs.
-
