Reverse Engineering Services: Core Solutions for Precision Replication and Innovative Designs
- November 27, 2024
- Tony
As manufacturing and technology evolve, organizations are faced with increasingly complex challenges, especially in part replacement, product repair, and innovative design. Reverse engineering services, as an important technical tool, have become the key to solving these problems.
1. Overview
1. What is reverse engineering services?
Reverse engineering is the process of deconstructing and analyzing an existing product or component to derive its original design data and manufacturing processes. This method allows for the creation of products with similar, but not identical, functions.
2. Reverse engineering vs. traditional manufacturing methods
Press: Scan and digitize existing products, analyze and modify data, then create new products.
Design Focus: Improve or modify existing products, often used for part replacement or upgrades.
Common Uses: Used for replacing old parts, upgrading products, or creating new designs without original blueprints.
Press: Start from product concept, using design processes to create new products.
Design Focus: Design new products from scratch, focusing on meeting market demands.
Common Uses: Mainly used for creating new products that meet specific needs.
3. Key Technologies and Tools for Reverse Engineering services
Reverse engineering leverages advanced techniques to analyze, replicate, and enhance existing products or components. Key technologies and tools include:

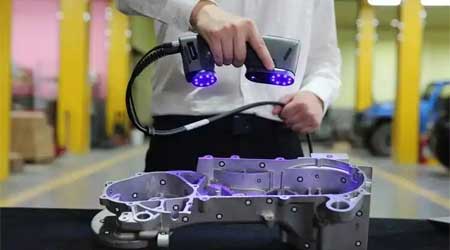

3D Scanning
Laser, structured light, or photogrammetry-based scanners capture precise object geometry, creating detailed digital models for design work.

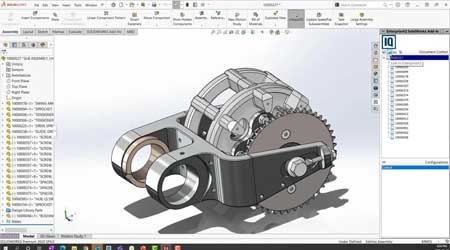

CAD Software
Scanned data is processed in software like SolidWorks or AutoCAD, allowing engineers to refine designs and generate new models.

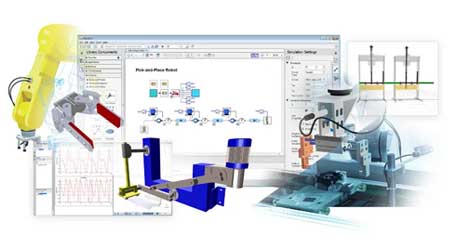

Modeling and Simulation
Tools like ANSYS and Simulink simulate performance, ensuring designs meet functional and structural standards.

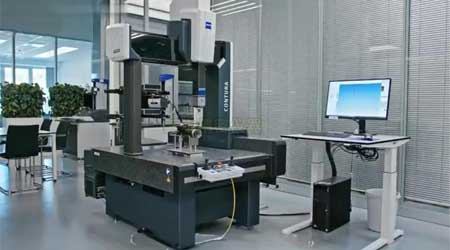

Coordinate Measuring Machines (CMM)
High-precision tools measure part dimensions and integrate with scan data for comprehensive analysis.

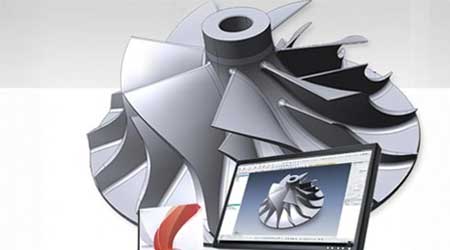

Reverse Engineering Software
Programs like Geomagic and PolyWorks convert scans into editable CAD models, ensuring data accuracy and usability.

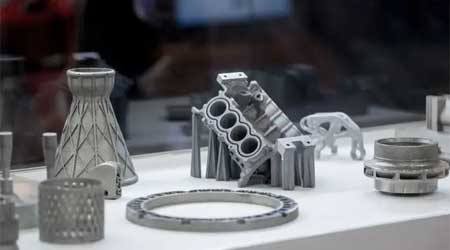

Prototyping and CNC Machining
Equipment like 3D printers and CNC machines rapidly produce prototypes or finished parts. 3D printing handles complex models, while CNC machining offers precision across diverse materials.
These tools and technologies streamline replication, optimization, and redesign, making reverse engineering essential for part replacement and innovation.
2. Workflow of Reverse Engineering Services
- Data Acquisition: Using a high precision 3D scanner to obtain detailed data about the physical part.
- Data Processing and Modeling: The scanned data is converted into a digital 3D model, which is usually post-processed using CAD software.
- Manufacturing & Processing: Processing and production of the part based on the generated digital model, using e.g. CNC machining or 3D printing technology.
- Quality Inspection: Accurate inspection methods are used to confirm the fit and functionality of the part to the original.
3. The Role of Reverse Engineering in Part Replacement and Repair
Reverse engineering is essential for parts replacement and repair, especially when original products are discontinued or parts are hard to find. It offers an efficient solution by enabling the remanufacture of precise replacement parts, preventing production downtime, and reducing repair costs.
For example, in cases of outdated machinery or discontinued automotive parts, reverse engineering allows for the accurate replication of components. This process not only replaces the parts but also supports repairs and upgrades, ultimately extending the equipment’s lifespan.
4. How to provide OEM replacement parts through reverse engineering
The process of providing OEM replacement parts through reverse engineering can be broken down into these key steps:
1. Accurate Replication to Ensure Compatibility
The main goal of reverse engineering is to accurately replicate the size, shape, and structure of the original part using 3D scanning technology. Engineers create a digital model to ensure the new replacement part is fully compatible with the original, avoiding assembly issues.
2. Optimizing the Quality and Performance of Replacement Parts
Once the part is replicated, engineers can optimize the design. This may involve improving strength, wear resistance, or reducing weight, enhancing the part’s performance and longevity. This step also allows customization to better meet specific needs, improving overall efficiency.
3. Reduced Development Costs and Time
Reverse engineering services saves time and cost by using existing part data, eliminating the need to design from scratch. With **3D scanning** and **CAD modeling**, parts can be recreated quickly, shortening development cycles and significantly reducing costs.
4. Equipment for Manufacturing Replacement Parts
- 3D Printing: Ideal for complex shapes and small production runs. It produces prototypes or final parts quickly and accurately, layer by layer.
- CNC Machining: Best for parts requiring high precision and surface quality. CNC machines can work with various materials, including metals and plastics, ensuring parts meet strict quality standards.
5. Cross-industry applications: the broad value of reverse engineering services

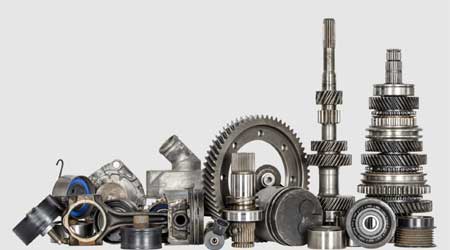

Reverse engineering is widely used across almost all manufacturing industries. Here are some key applications:
- Product Development: For small and medium-sized businesses, reverse engineering helps reduce development costs and shorten the R&D cycle, especially when developing new products.
- Mold Development: Reverse engineering allows for the quick digitization and modification of existing molds, greatly improving mold design and modification efficiency.
- Military Equipment Development: In the development of military equipment, reverse engineering provides accurate replacement parts and design upgrades for high-tech systems.
- Cultural Relic Restoration: Reverse engineering is used to digitally reconstruct and restore cultural relics, offering innovative solutions for preservation.
In specific industries, reverse engineering offers even greater benefits:
By replicating discontinued or hard-to-find parts, reverse engineering helps automakers provide alternatives, addressing part shortages.
In aerospace, reverse engineering is essential for replacing and repairing aircraft parts, ensuring safety and high performance.
With growing demand for personalized medicine, reverse engineering offers reliable solutions for customized medical devices and parts tailored to patients’ needs.
Reverse engineering manufactures accurate parts for electronic equipment, particularly in repairs and upgrades, extending equipment lifespan and reducing replacement costs.
6. Summary (Reverse Engineering Services)
Through advanced techniques, reverse engineering offers efficient solutions for part replacement, repair, and innovative design across industries like automotive, aerospace, and medical devices.
In the future, the integration of 3D printing, AI, and automation will further enhance its precision and efficiency. Additionally, emerging material technologies will expand its applications, unlocking new possibilities for innovation.
