Exploring Milling Operations and Machine Tool Varieties

EDITOR'S NOTE: Updated on October 16, 2025. We've added a detailed case study demonstrating how multiple milling operations were strategically combined to produce a complex industrial component.

Confused by milling terms like face, peripheral, or different machine types? This uncertainty can make it hard to specify jobs or understand manufacturing processes effectively.

Milling encompasses diverse operations like face and peripheral milling, performed on various machines like vertical or horizontal mills. The choice depends on the desired part geometry, material, and production volume.

When I talk with engineers like David about CNC machining projects for Allied Metal, milling is almost always part of the conversation. It’s such a fundamental and versatile process for shaping metal, plastic, and even wood. But "milling" isn't just one single thing. My experience has shown that in CNC milling, there are many types of milling, the most common types of milling operations are face milling and peripheral milling. And then you have different types of milling machines too. Of course, there are many types of machine tools and each has its advantages, but for most projects, standard face milling gets the job done efficiently. Understanding these distinctions is pretty important for anyone involved in designing or manufacturing parts. So, let's mill over the details and get a clearer picture.

---

What Are the Different Types of Milling Operations You Should Know?

You know milling removes material with a rotating cutter. But what are the specific techniques or operations used to create different shapes and features on a workpiece?

Milling operations include face milling (flat surfaces), peripheral milling (slots, edges), end milling (pockets, profiles), slotting, form milling (complex shapes), and more, each for specific geometric outcomes.

Diving Deeper into Milling Operations

Milling is a machining process that uses a rotating multi-tooth cutter to remove material from a workpiece. The way the cutter is oriented and moved relative to the workpiece defines the specific milling operation. For an engineer, knowing these operations helps in designing parts that can be efficiently manufactured.

Primary Categories Based on Cutter Orientation:
Face and peripheral milling as common, and these are defined by how the cutter attacks the workpiece.

1. Peripheral Milling¹ (or Plain Milling):
   • In this operation, the axis of the cutter is parallel to the surface being machined. The cutting edges are on the periphery (outside surface) of the tool.
   • Types of Peripheral Milling:
     • Slab Milling: Produces a flat surface with a wide, plain milling cutter.
     • Slotting Milling (Slot Milling): Creates narrow slots or grooves using a thin cutter (like a slitting saw or a specific slot mill).
     • Side Milling: Machines the side of a workpiece using a side milling cutter.
     • Straddle Milling: Two or more side milling cutters are used to machine two parallel vertical surfaces simultaneously.
     • Form Milling: Uses a cutter with a special shape (form cutter) to produce a contoured surface (e.g., concave, convex, or complex profiles).
2. Face Milling:
   • Here, the cutter's axis is perpendicular to the surface being machined. Cutting occurs with the teeth on both the periphery and the face of the cutter.
   • This is widely used for creating large, flat surfaces quickly and efficiently, as my insight suggests. It typically produces a good surface finish.

Other Common Operations:

• End Milling: A very versatile operation using an end mill (which has cutting edges on its end and periphery). It can create pockets, slots, profiles, contours, and flat surfaces. It's a type of peripheral and sometimes face milling depending on how it's used.
• Profile Milling: Machining the outside periphery of a flat or curved part.
• Pocket Milling (Pocketing): Machining an internal cavity or pocket within a part.
• Surface Contouring (3D Milling)²: Creating complex three-dimensional surfaces using ball-nose end mills or other specialized cutters, often driven by CAM software.
• Plunge Milling: Feeding the cutter axially into the workpiece, often used for roughing out deep cavities.
• Thread Milling: Creating threads using a thread milling cutter.
• Gear Milling: Using form cutters to produce gear teeth.

Understanding these different operations allows for better communication with machinists and more effective part design.

---

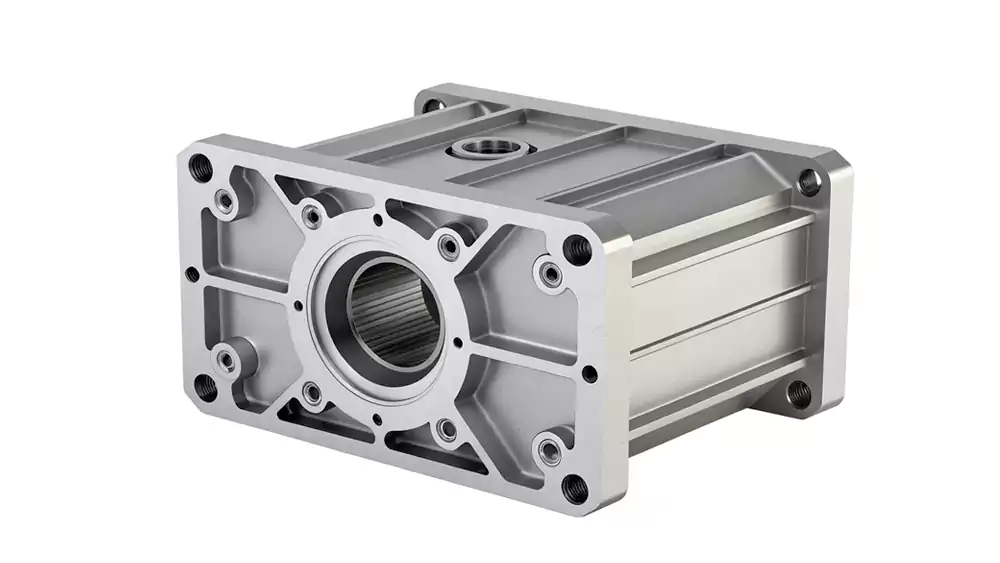

Case Study: Multi-Operation Milling for Industrial Actuator Housing

Wondering how multiple milling operations come together in a real-world project? This case study demonstrates the strategic application of various milling techniques to produce a complex industrial component.

We successfully manufactured 500 precision actuator housings for a heavy equipment manufacturer by strategically combining face milling, pocket milling, profile milling, and precision boring operations on a 5-axis CNC machining center, achieving 99.2% dimensional accuracy and reducing machining time by 22% compared to traditional methods.

A leading manufacturer of industrial automation equipment approached us with a challenging component requirement for their new line of hydraulic actuators. The project demanded tight tolerances and complex geometries that would test the limits of conventional machining approaches.

Part Specifications:

• Material: 6061-T6 Aluminum
• Dimensions: 280mm × 180mm × 120mm
• Critical Features:
  • Main bore: Ø85mm ±0.015mm
  • Mounting flange: Flatness 0.05mm
  • Complex internal pockets with 2mm wall thickness
  • Multiple threaded holes (M6, M8, M10)
• Surface Finish: Ra 1.6μm on sealing surfaces
• Quantity: 500 units with 6-week delivery

Machining Strategy & Operations Breakdown:

Operation	Equipment Used	Tooling	Parameters	Purpose
Face Milling	5-axis VMC	80mm face mill with aluminum-specific inserts	2400 RPM, 1200 mm/min feed, 2mm DOC	Create flat mounting surfaces and establish datum
Rough Pocketing	5-axis VMC	Ø16mm carbide end mill	8000 RPM, 2000 mm/min feed, 25mm DOC	Remove bulk material from internal cavities
Profile Milling	5-axis VMC	Ø10mm ball nose end mill	10,000 RPM, 1500 mm/min feed	Machine complex external contours
Finish Boring	5-axis VMC	Precision boring head	3000 RPM, 200 mm/min feed	Achieve Ø85mm ±0.015mm main bore
Slot Milling	5-axis VMC	Ø8mm slot drill	6000 RPM, 800 mm/min feed	Create mounting slots and keyways

Technical Challenges & Solutions:

1. Thin-Wall Machining: The 2mm internal walls required careful toolpath planning and climb milling techniques to prevent vibration and deflection. We used trochoidal milling paths with reduced stepovers to maintain wall integrity.

2. Thermal Management: Aluminum's tendency to expand with heat required careful coolant management and consistent machining parameters to maintain dimensional stability across all 500 parts.

3. Multi-Setup Elimination: The 5-axis capability allowed us to complete the part in two setups instead of the traditional four, reducing handling time and improving positional accuracy between features.

Performance Metrics & Results:

• Cycle Time: 45 minutes per part (reduced from 58 minutes with conventional methods)
• Tool Life: Average 180 parts per end mill before regrinding
• Dimensional Accuracy: 99.2% of critical features within specification
• Surface Finish: All sealing surfaces achieved Ra 1.2-1.6μm
• Scrap Rate: 0.4% (2 parts out of 500)

The production manager noted: "The strategic combination of milling operations and 5-axis capability gave us the precision and efficiency needed for this complex component. The reduced setup time alone saved us approximately 35 hours in total production time."

This case demonstrates how the strategic selection and application of milling operations can dramatically impact manufacturing efficiency, quality, and cost-effectiveness. Leveraging the right expertise in CNC machining services is often the key to transforming a complex design into a precision-machined reality.

Whether your project involves intricate pockets, tight-tolerance bores, or challenging thin-wall geometries, our team provides the comprehensive CNC machining services to deliver results. We combine advanced equipment with deep technical knowledge to ensure your components are manufactured to the highest standards of precision and reliability.
💬Discuss with experts

---

Beyond Operations: How Many Types of Milling Machines Exist?

We've discussed milling operations, but what about the machines themselves? What different types of milling machines are out there to perform these tasks?

Milling machines primarily include vertical mills and horizontal mills, based on spindle orientation. Further types include knee mills, bed mills, CNC machining centers, and multi-axis machines for varying complexity.

Diving Deeper into Milling Machine Classifications

Just as there are various milling operations, there's a diverse range of milling machines designed to perform them. The "mill" is the machine tool that holds and rotates the cutting tool and provides the controlled movement for the workpiece or the tool. For engineers, knowing about machine types can influence design for manufacturability if certain machine capabilities are (or aren't) readily available.

Classification by Spindle Orientation:
This is the most fundamental way to categorize milling machines:

1. Vertical Milling Machines:
   • The spindle axis is oriented vertically. The cutting tool is held in the spindle and rotates in this vertical orientation.
   • These are very common and versatile, especially for operations like face milling, end milling, drilling, and boring.
   • Turret Mills³ (e.g., Bridgeport-style): The spindle head can be swiveled, offering greater flexibility for angled cuts. The table moves in X and Y axes, and the knee (supporting the table) moves in the Z-axis.
   • Bed Mills: The worktable is mounted directly on a massive bed, providing greater rigidity for heavier cuts. The spindle head moves in X, Y, and Z axes.
2. Horizontal Milling Machines:
   • The spindle axis is oriented horizontally. The cutter (often a wide, arbor-mounted cutter) rotates on this horizontal axis.
   • These are well-suited for slab milling, straddle milling, gang milling (using multiple cutters on an arbor), and cutting deep slots. They are generally more rigid and can take heavier cuts than vertical turret mills.

Other Classifications:

• Knee-Type Mills: The worktable is mounted on a "knee" that moves vertically on the column. Turret mills are a type of knee mill.
• Bed-Type Mills: As mentioned, the table is on a stationary bed, offering higher rigidity. Common in production environments.
• Ram-Type Mills: The spindle is mounted on a sliding ram that can be moved in and out, increasing the machine's reach.
• Planer-Type Mills: Very large machines with a long table that moves like a planer, used for machining very large workpieces.
• CNC Milling Machines (Machining Centers): These are the modern standard. They use computer numerical control for automated operation, often feature automatic tool changers (ATCs), and can be vertical or horizontal. They offer high precision, repeatability, and can perform complex multi-axis machining. Allied Metal heavily relies on CNC machining centers.
• Multi-Axis Machines:
  • 3-Axis: Standard X, Y, Z linear movements.
  • 4-Axis: Adds a rotational axis (A or B) to the table or spindle.
  • 5-Axis: Adds two rotational axes, allowing the tool to approach the workpiece from many different angles, ideal for very complex 3D shapes.

The type of machine available often dictates the most efficient way to approach a milling job.

---

What Is the Most Common Type of Milling Operation Used in Shops Today?

With various milling techniques available, which ones are the real workhorses? What operations do machine shops perform most frequently to produce parts?

Face milling (for flat surfaces) and end milling (a type of peripheral milling for slots, pockets, and profiles) are among the most common and versatile milling operations used daily in machine shops.

Diving Deeper into Everyday Milling Operations

While there's a wide array of specialized milling operations, a few stand out as the most frequently used in job shops and production environments, including my own at Allied Metal. My insight that face milling and peripheral milling are the most common holds true, with end milling being a particularly ubiquitous form of peripheral milling.

Why Face Milling is So Common:

• Creating Flat Surfaces: This is one of the most fundamental requirements for many machined parts. Face milling is highly efficient at producing large, flat, and smooth surfaces quickly.
• Versatility: It can be used for roughing (removing a lot of material) and finishing (achieving a good surface texture).
• Tooling: A wide variety of face mills with indexable inserts are available, allowing for cost-effective machining of different materials.
• Applications: Squaring up blocks of material, creating mounting surfaces, machining the faces of engine blocks or machine bases. If David designs a part that needs a flat mating surface, face milling is likely the operation to create it.

Why End Milling (and Peripheral Milling in general) is So Common:
End milling, using an end mill cutter, is incredibly versatile and is a staple for many features:

• Pockets: Machining internal cavities of various shapes and depths.
• Slots and Grooves: Creating keyways, O-ring grooves, or other channels.
• Profiles and Contours: Machining the outside shape of a part, including complex curves.
• Shoulders and Steps: Creating stepped features.
• Edge Preparation: Chamfering or radiusing edges.
• Drilling (with some end mills): Some end mills are center-cutting and can be used to plunge and create holes, though dedicated drills are usually better for deep or precise holes.

Other peripheral milling operations like slotting (with slitting saws for narrow, deep slots) and side milling are also frequently used when those specific features are required.

The reason these operations are so common is their ability to produce a vast majority of the geometric features found on typical machined parts. CNC technology has further enhanced their capabilities, allowing for complex paths and precise control, making them indispensable for modern manufacturing.

---

What Are Three Basic and Widely Used Types of Milling Machines?

There are many mill designs, but if you had to pick a few fundamental types that form the backbone of many machine shops, what would they be?

Three basic, widely used types are the versatile vertical knee mill (like a Bridgeport), the robust horizontal milling machine, and the modern, automated CNC machining center (vertical or horizontal).

Diving Deeper into Fundamental Milling Machine Types

While we discussed various classifications earlier, if we were to simplify and highlight three foundational types of milling machines that represent different capabilities and eras of manufacturing, these would be good examples for us to understand:

1. Vertical Knee Mill (Turret Mill)⁴:

   • Description: Often typified by the iconic Bridgeport mill. It has a vertically oriented spindle mounted on a head that can often swivel and tilt. The worktable moves in X and Y directions, and the "knee" (which supports the table and saddle) moves up and down (Z-axis).
   • Key Features: Highly versatile, relatively simple to operate (manually, though many have CNC retrofits), good for a wide range of operations like face milling, end milling, drilling, boring, and creating angled features.
   • Typical Uses: Toolroom work, one-off prototypes, small production runs, repairs, educational settings. It's the classic all-around mill for general-purpose work. Many machinists, myself included, learned on machines like this.
   • Limitations: Generally less rigid and not suited for very heavy material removal or high-volume production compared to bed mills or CNC machining centers.

2. Horizontal Milling Machine:

   • Description: Features a horizontally oriented spindle. The cutting tool (often a wide arbor-mounted cutter like a slab mill or side-and-face cutters) rotates on this horizontal axis.
   • Key Features: Typically more robust and rigid than vertical knee mills, allowing for heavier cuts and higher material removal rates. Well-suited for operations like slab milling large flat surfaces, straddle milling (machining two parallel sides at once), gang milling (using multiple cutters on one arbor), and cutting deep slots.
   • Typical Uses: Production of larger parts, cutting gears (with indexing heads), heavy-duty slotting and profiling.
   • Limitations: Can be less versatile for certain types of complex 3D work compared to a vertical mill or multi-axis CNC.

3. CNC Machining Center (Vertical or Horizontal):

   • Description: This is the modern evolution and workhorse of milling. It uses Computer Numerical Control (CNC) for fully automated operation. It features an automatic tool changer (ATC) that can swap tools quickly, an enclosure for safety and coolant management, and high-precision motion systems. They can be vertical (VMC) or horizontal (HMC).
   • Key Features: High precision and repeatability, high productivity, ability to perform complex 2D and 3D contouring, reduced operator intervention. VMCs are great all-around machines; HMCs often excel in production with pallet changers. Allied Metal relies heavily on these.
   • Typical Uses: Virtually any milling task, from simple to highly complex, in prototype to high-volume production across all industries. Essential for modern manufacturing where efficiency and accuracy are paramount.

These three types represent a progression in capability and automation, each having its place depending on the specific manufacturing needs.

---

Conclusion

Milling offers diverse operations and machine types for various needs. Understanding these options helps in selecting the best approach for efficient and precise part manufacturing.

---
